Mike Roig, Sculpture


Chapter 1, early December 2012

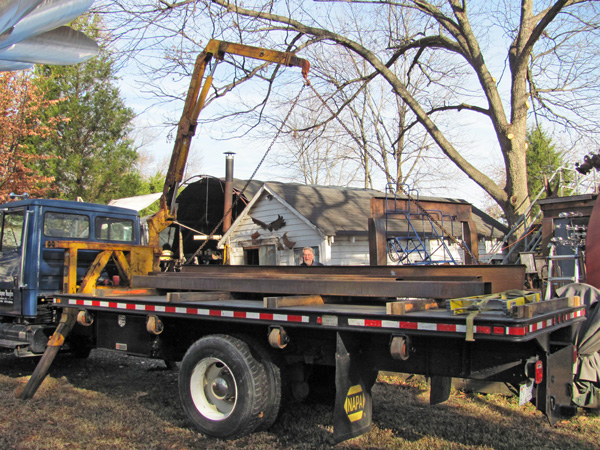

The first step in translating any idea of mine into sculpture is a trip to the scrap yard, a stage

made even more enjoyable ever since my good friend Wayne Vaughn pieced together this amazing truck

from several sources, including a bed from one of those scrap yards, and a knuckle boom rusting away

in the weeds on some other truck down east. Coming off the truck here is the beam that will become the

foundational element in "Murmuration."

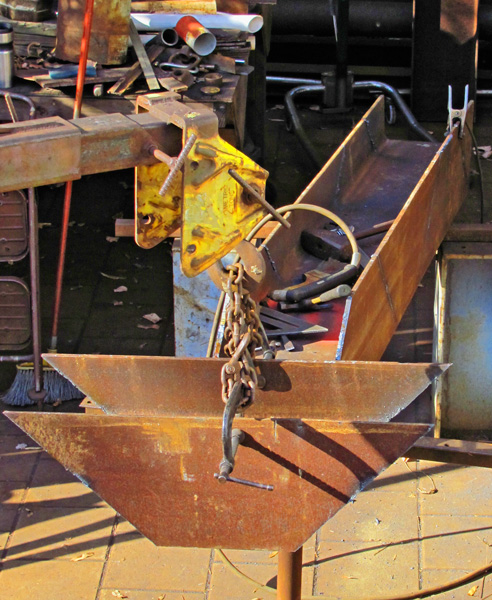

First cuts, and a view of the how I keep my toes in tact in stead of crushed by falling steel.

Strategy becomes all important as you start dealing with the increased weight of all these

substantial steel elements.

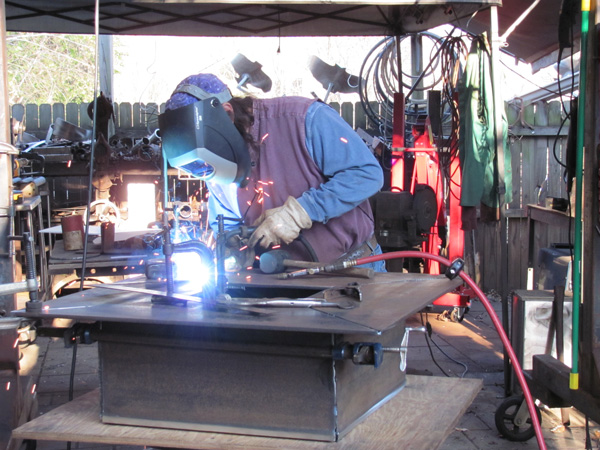

Once wire brushed, and the edge ground smooth where the flange has been cut away, there

is already a degree of aesthetic refinement to the shape of the base as I weld it up...

...and like all refining processes, it takes time. By the end of this second day I'm getting close to

being happy with how it's taking shape.

At the zoo the footing has been poured and anchors set in concrete. I made duplicate patterns

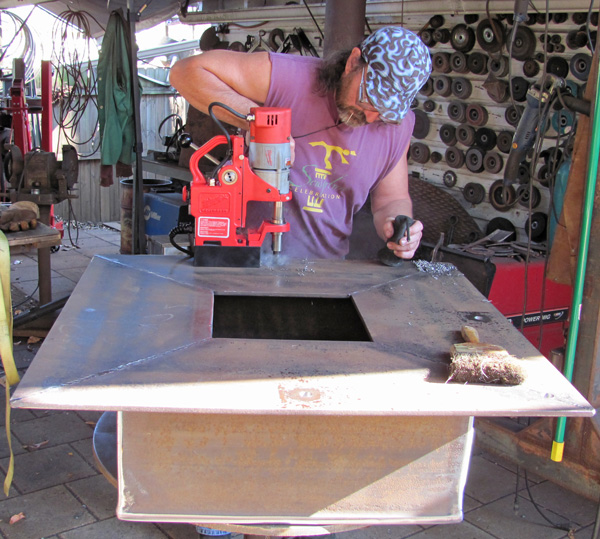

to keep us on the same page as far as bolt pattern goes. The drill here is a nifty little device that is

held in place during the drilling by a strong electro-magnet, and cuts through steel like a hole-saw

that you might use to drill a setting for a lock set in a wooden door.

As I said, strategy comes into play with every maneuver in handling a shape like this. Already it

weighs in the several hundreds of pounds range, so lifting, flipping and moving all involve time

and thought.

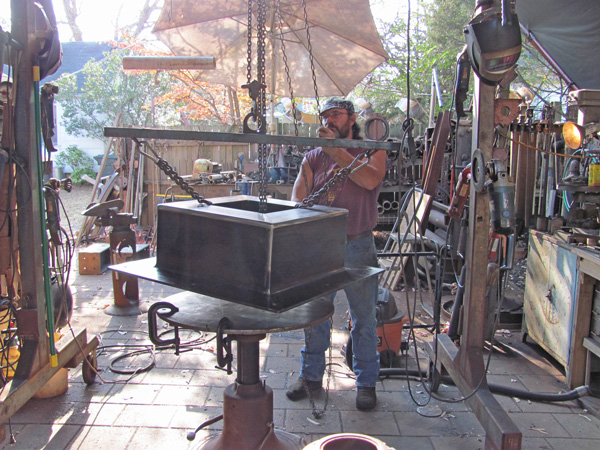

And so the first element is fabricated. Next step will be to dig that long steel tube out of the materials stack and

start to fashion the vertical movement skyward. I'll post more as that step becomes a reality.

- Mike


Coming on mid-January, Chapter 2

Early to mid-February, Chapter 3

Late February, Chapter 4

Mid-April, Done, Chapter 5
